Robotic Welding: Revolutionizing the World of Fabrication

Greetings, and welcome to yet another enlightening dive into the captivating world of robotics! If you've been exploring the realm of industrial automation, you've likely come across the term "robotic welding." But what exactly is it, and how is it shaping the landscape of fabrication? Well, you're about to find out!

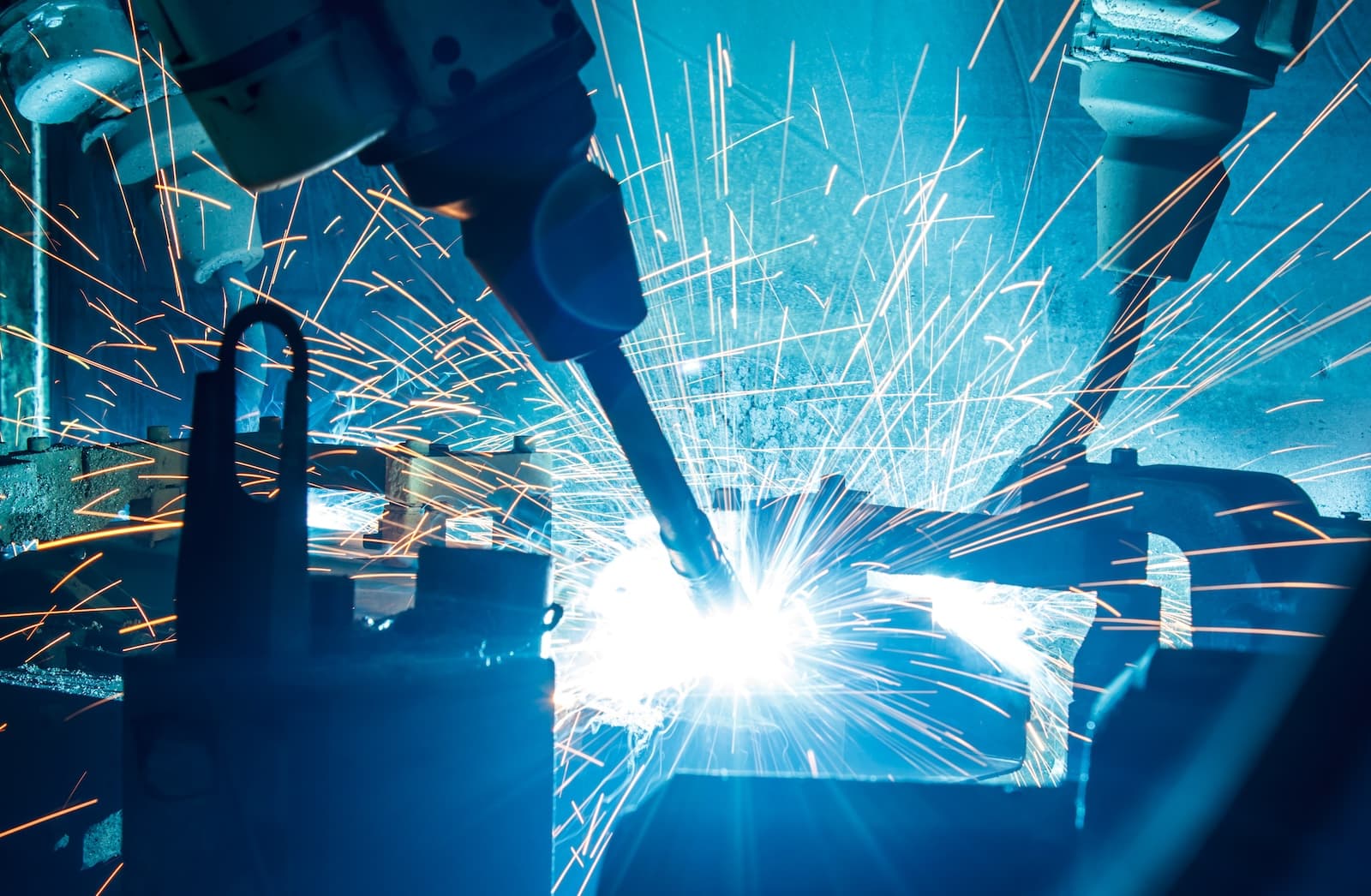

Robotic welding has been a game-changer in numerous industries, paving the way for advancements in quality, efficiency, and safety. In this guide, we'll unravel the nuts and bolts of robotic welding, the leading manufacturers in the field, and why this technology might just be the missing piece in your manufacturing puzzle.

Ready to ignite the spark of knowledge and explore the fascinating world of robotic welding? Let's dive in and uncover the future of fabrication, one weld at a time!

Robotic Welding Process

Welding with a robot involves several steps. Here's a step-by-step guide on the process:

Designing and Programming: The welding path and parameters are defined using a CAD (Computer-Aided Design) model of the workpiece. These instructions tell the robot where, when, and how to execute the weld. Programming can be done offline on a computer or directly on the robot controller using a teach pendant.
Workpiece Setup: The pieces to be welded are positioned in a fixture within the robot's workspace. The fixture keeps the pieces in the correct alignment for the weld and allows the robot to consistently perform the weld the same way each time.
Executing the Weld: With everything set up, the robot performs the programmed welding operation. The robot controller manages all aspects of the process, including the movement of the robot arm, the control of the welding torch (or other welding tool), and the delivery of the welding power supply.
Monitoring: During the welding operation, sensors may monitor the process and make real-time adjustments. For example, seam-tracking systems can adjust the robot's path to follow variations in the joint position, while weld quality monitoring systems can detect defects or anomalies in the weld.
Inspection and Cleanup: After the weld is completed, any spatter or slag (byproducts of the welding process) are cleaned off the workpiece. The weld may be visually inspected or examined using non-destructive testing techniques to ensure it meets quality standards.
Post-Welding Operations: Depending on the application, the workpiece might undergo post-welding operations such as grinding or painting, either manually or using additional automated processes.

Types of Robotic Welding

Robotic welding involves using programmable robots to automate the welding process. There are two primary types of robotic welding:

Arc Welding: Also known as MIG or TIG welding, it uses an electric arc to create heat and melt the metal.
Spot Welding: This method uses two electrodes to apply pressure and heat to the areas being welded.

How Robotic Arc Welding Works

Programming the Robot: The first step involves programming the robot with the specific actions it needs to perform. This can be done either by manually guiding the robot through the desired path and saving the actions (teach programming), or by inputting a series of commands using a programming language that the robot understands (offline programming).
Arc Welding Process: Once the robot is programmed, it's ready to start the welding process. The robot uses an electric power source to generate an electric arc between the electrode (located in the welding torch of the robot) and the workpiece (the materials being welded together). The intense heat generated by the arc - often thousands of degrees Celsius - melts the workpiece materials and a filler material, if used.
Creating the Joint: As the molten materials cool, they solidify and form a strong joint. The robot moves the torch along the welding path, creating a continuous weld seam.
Quality Control: After the welding process, inspections are often performed to ensure the quality of the weld. This can involve visual inspections, destructive testing (for sample parts), or non-destructive testing methods like ultrasonic testing or x-ray imaging. Some robotic systems even have real-time monitoring to automatically detect and correct issues during the welding process.
Repeat: Once the welding process and post-weld inspections are complete, the robot can quickly start on the next workpiece. The robot follows the same pre-programmed path for each workpiece, ensuring consistent, high-quality welds every time.

How Robotic Spot Welding Works

Robotic spot welding is a form of resistance welding where a robot is employed to perform the welding operations. This process is commonly used in high-volume industries such as automobile manufacturing. Here's a step-by-step explanation of how it works:

Programming the Robot: Just like in robotic arc welding, the initial step involves programming the robot. This includes specifying the path the robot should follow, the spots where welding is needed, and other variables like the pressure to be applied and the duration of the current application.
Spot Welding Process: In spot welding, the welding electrodes take the form of copper alloy tips that are designed to concentrate the electric current into a small "spot." The robot maneuvers these electrodes to align with the spots on the workpiece where the weld is needed.
Creating the Weld: A high electric current is passed through the aligned electrodes and into the workpiece for a very short period of time (usually a fraction of a second). The resistance of the workpiece to this electric current generates intense heat, which causes the metal in the targeted spot to melt and fuse together.
Cooling and Solidification: After the current is turned off, the electrodes maintain pressure on the spot to hold the molten metal together as it cools and solidifies, forming a solid joint. The robot then moves the electrodes away. Quality Control: As with arc welding, inspections are performed to ensure the weld's quality. This could involve visual inspections, peel tests, or other non-destructive testing methods.
Repeat: The robot then moves on to the next spot on the workpiece (or the next workpiece) and repeats the process. Given their programmable nature, robots can perform these actions consistently and efficiently, producing high volumes of identical spot welds.

By automating spot welding with robots, manufacturers can improve their production speed, consistency, and quality while also reducing the potential for human errors and workplace injuries.

What are the Differences Between Robotic Arc Welding and Robotic Spot Welding

Robotic arc welding and robotic spot welding both utilize automated robots for welding, but they differ significantly in their processes, applications, and advantages. Here are some key differences:

Welding Process:

Robotic Arc Welding: In arc welding, an electric arc is created between an electrode and the workpieces. The intense heat generated by this arc melts the workpieces and a filler material (if used), which then cool and solidify to form a joint. The robot moves the welding torch along the joint line, creating a continuous weld seam.
Robotic Spot Welding: Spot welding is a type of resistance welding where the robot applies pressure and an electric current to specific "spots" on the workpieces using a pair of copper alloy electrodes. The resistance to the electric current causes these spots to heat up and fuse together, forming individual spot welds.

Applications:

Robotic Arc Welding: This process is typically used for creating strong, continuous joints and is widely used in industries such as automotive, aerospace, construction, and shipbuilding.
Robotic Spot Welding: Spot welding is commonly used for joining thin sheets of metal, making it especially popular in the automotive industry for assembling body parts. It's generally not suitable for thicker materials or for creating continuous seams.

Advantages and Limitations:

Robotic Arc Welding: This method can create very strong, continuous welds, and the use of filler material allows it to bridge gaps between workpieces. However, it requires more complex programming and a higher level of skill to operate and maintain the system.
Robotic Spot Welding: Spot welding is a faster process that's ideal for high-volume production of identical parts. It's also simpler to program and operate. However, it's limited to certain material types and thicknesses, and it can only create individual spot welds rather than continuous seams.

Both methods offer the advantages of automation, including increased efficiency, consistency, and safety. The choice between arc welding and spot welding will depend on the specific requirements of the task, such as the type and thickness of the materials being welded, the desired strength and appearance of the weld, and the production volume.

The Arc Welding Process

Arc welding is a type of welding process that utilizes an electric arc to generate heat and fuse metals together. Here's a step-by-step explanation of how it works:

Creation of the Electric Arc: This process starts by applying a voltage across an air gap between an electrode and the metal workpiece. When the electrode is brought close to the workpiece, the electrical resistance of the air decreases and allows the current to flow, which creates a high-temperature electric arc. This arc can reach temperatures of up to 6500°F (3600°C), enough to melt most metals.
Melting the Metals: The extreme heat of the electric arc melts the surface of the workpiece and the tip of the electrode. If the electrode is consumable, it serves as filler metal, contributing additional material to the joint. The molten metal droplets from both the workpiece and the electrode are transferred across the arc and deposited in the weld area.
Creating the Weld Pool and Joint: As the arc moves along the joint line, it leaves behind a pool of molten metal - also known as the weld pool. This pool cools and solidifies, forming a joint between the pieces of metal.
Shielding the Weld: During this process, a shielding gas (often supplied by the electrode) surrounds the weld area. This gas prevents contamination of the weld pool by atmospheric gases like oxygen and nitrogen, which can cause weld defects.

Overall, arc welding is a versatile method that can be used with a wide variety of metals and joint types. It's widely used in industries ranging from automotive to construction and more.

Robotic Arc Welding Variations

Robotic arc welding has several variations to accommodate different types of materials, workpiece geometries, and specific production requirements. Here are the main variations:

Robotic Gas Metal Arc Welding (GMAW),

Robotic Gas Metal Arc Welding (GMAW) also known as Metal Inert Gas (MIG) welding, is one of the most common types of welding processes used in manufacturing and industrial applications, and it's particularly suited to automation. Here's a deeper look at how it works:

Feeding the Electrode: In GMAW, a continuously-fed electrode wire serves as both the filler metal and the arc conductor. The robot controls the feeding of the wire electrode through the welding gun and into the arc area at a consistent speed, ensuring a steady welding process.
Creating the Arc and Melting the Metal: The robot then moves the welding gun to the weld start location and initiates the arc. The electric arc is created between the wire electrode and the workpiece, generating heat that melts both the wire and the surface of the workpiece to form a weld pool.
Providing Shielding Gas: Concurrently, an inert or semi-inert shielding gas is supplied through the welding gun. This gas displaces atmospheric air from around the weld pool, preventing oxidation and contamination that can weaken the weld.
Controlling the Weld Process: The robot precisely controls the movement of the welding gun along the weld path, maintaining optimal arc length, travel speed, and torch angle for consistent, high-quality welds.
Inspection and Cleanup: Once the weld is completed, any remaining slag (a byproduct of the welding process) is removed, and the weld may be inspected, often with the assistance of automated inspection systems.

In the hands of a robot, GMAW can produce high-quality welds at a high production rate, making it a staple in industries ranging from automotive to shipbuilding. However, it's most effective on thinner materials and on metals like steel, aluminum, and stainless steel.

Also, while GMAW is generally an indoor process (as wind can disperse the shielding gas), modifications like using flux-cored wire can allow it to be used outdoors.

Robotic Gas Tungsten Arc Welding (GTAW),

Robotic Gas Tungsten Arc Welding (GTAW) or Tungsten Inert Gas (TIG) welding, is a process that uses a non-consumable tungsten electrode to produce a weld. This technique is known for its precision and the high quality of its welds, making it especially suitable for critical operations. Here's a detailed look at how it works:

Preparation and Alignment: The robot aligns the tungsten electrode and the workpiece, ensuring the correct angle and distance for the arc. A filler metal rod is often used, and this is manually fed into the arc by a separate automated system.
Initiating the Arc: The robot starts the arc, which generates intense heat between the tungsten electrode and the workpiece. This heat melts a small area of the workpiece surface to create a weld pool.
Applying the Filler Metal: If a filler metal is used, it's introduced into the weld pool manually or by a separate automated system. The filler metal melts in the arc and combines with the molten workpiece material.
Shielding the Weld Pool: Throughout the process, an inert or semi-inert shielding gas is supplied to the weld area. This gas protects the weld pool and the hot tungsten electrode from atmospheric contamination.
Controlling the Weld: The robot controls the movement of the torch along the weld path, maintaining an optimal distance and angle to ensure a consistent, high-quality weld. The robot also manages the power supply to maintain a steady arc.
Completing the Weld: Once the weld is finished, the arc is extinguished, and the shielding gas flow is stopped. The weld may be inspected and cleaned, often with the assistance of automated inspection systems.

Robotic GTAW can deliver excellent quality welds and is particularly effective for welding thin materials or complex, precision joints. It's suitable for a wide range of metals, including steel, aluminum, and particularly corrosion-resistant alloys. However, it's generally slower and more complex than other welding methods like GMAW, so it's typically used for more critical, high-value applications.

Robotic Flux-Cored Arc Welding (FCAW): This variation is similar to GMAW but uses a special tubular wire filled with flux instead of a solid wire. The flux generates a shielding gas when the wire is consumed, providing protection for the weld pool.
Robotic Submerged Arc Welding (SAW): In SAW, the arc is struck beneath a blanket of granular flux, which protects the arc and the weld pool from atmospheric contamination. This method is typically used for heavy-duty applications and provides deep weld penetration.
Robotic Plasma Arc Welding (PAW): This technique involves creating a superheated plasma column between a non-consumable electrode and the workpiece to perform the weld. PAW offers better control over the arc and can achieve higher temperatures than other methods.

Each of these methods has its own strengths and weaknesses, and the choice among them depends on your application's specific requirements, including the type and thickness of the materials, the weld quality requirements, and the production volume.

Robotic Spot Welding Variations

Robotic spot welding, like its manual counterpart, comes in several variations, each designed to handle different materials, welding requirements, and industrial applications. Here are the main variations:

Robotic Resistance Spot Welding (RSW): The most common form of robotic spot welding, RSW employs a robot to maneuver the welding gun and apply pressure and current at specified spots on the workpiece. This automated process significantly enhances efficiency, consistency, and safety.
Robotic Projection Welding (PW): In this variation, the robot handles workpieces that have certain spots or "projections" pre-formed to concentrate the welding current. This technique improves efficiency and consistency, making it ideal for high-volume production of identical parts.
Robotic Seam Welding (SW): A variation of spot welding, seam welding creates a series of overlapping spot welds to form a continuous, watertight seam. Robotic seam welding automates this process, providing precise control over the welding speed and electrode force for superior weld quality.
Robotic Flash Butt Welding (FBW): This variant is used to join the ends of components such as rods or pipes. The robot positions the workpieces end-to-end, then applies an electric current and force to create a high-temperature "flash," followed by a rapid "upset" to fuse the materials together.

Remember, each variant of robotic spot welding has its own benefits and limitations, and the best choice will depend on the specifics of your application, including the type and thickness of the materials, the production volume, and the quality requirements.

The Spot Welding Process

Spot welding is a type of resistance welding that is used to weld thin sheets of metal together at specific spots. Here's how the process works step-by-step:

Alignment of Electrodes: Spot welding begins with the alignment of copper alloy electrodes on the spots to be welded on the workpiece. These electrodes concentrate the electric current into a small spot.
Application of Current: A high electric current is passed through the electrodes and into the workpiece for a short period of time (generally a fraction of a second). The resistance of the workpiece to this electric current generates intense heat, which causes the metal in the targeted spot to melt and fuse together.
Cooling and Solidification: After the current is switched off, the electrodes maintain pressure on the spot to hold the molten metal together as it cools and solidifies, forming a solid joint or 'spot'. Once cooled, the electrodes are removed.
Repeat: The process is then repeated on the next spot until the desired number of spots are welded. The speed of this process allows for high production rates.

Spot welding is commonly used in high-volume industries such as automotive manufacturing due to its speed, efficiency, and the strong joints it produces. However, it's limited to joining thin sheets of metal and is not suitable for thicker materials or for creating continuous seams.

Robotic Welding Components

A robotic welding system typically consists of several key components:

The Robot Arm: This is the physical manipulator that moves the welding torch along the weld path. The arm consists of several joints and links that allow it to move in multiple directions. It's designed to be precise and repeatable, ensuring the same quality of weld every time.
The Welding Torch: Attached to the robot arm, the welding torch is the part of the robot that does the actual welding. The type of torch can vary based on the specific welding process used (MIG, TIG, spot welding, etc.).

A welding torch is a device used in various types of welding and cutting processes to heat up, melt, and join metals. The torch is usually held by the welder or, in the case of robotic welding, it is mounted on the robotic arm.

Key elements of a welding torch include:

Nozzle: The nozzle directs the flow of the shielding gas, protecting the weld pool from contamination by atmospheric gases. It's also where the arc (or flame, in the case of oxy-fuel welding) is formed.
Electrode: In welding processes like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas), the electrode is a vital part of the torch. The electrode can be either consumable, as in MIG welding, where the electrode melts to become part of the weld, or non-consumable, as in TIG welding, where the electrode simply creates the heat needed to make the weld but doesn't melt.
Gas Diffuser: This is an element of the torch that helps distribute the shielding gas evenly around the weld pool.
Torch Body: The body of the torch often includes a handle for holding the torch (in manual welding) or a mount for attaching it to a robot arm (in robotic welding). The body is typically designed to be heat and impact-resistant.
Power Cable: The power cable supplies the electrical energy needed for the welding process. In gas-shielded processes like MIG and TIG, the torch also includes a gas hose that delivers the shielding gas from its source to the nozzle.

The type of welding torch used can vary depending on the specific welding process, the materials being welded, and other factors such as the required precision and weld quality.

The Controller: This is the "brain" of the robot. It's a computer that controls the movements of the robot arm and the operation of the welding torch. The controller is programmed with the parameters for the welding process and uses this information to direct the robot's actions.
Power Supply: The power supply provides the energy necessary for the welding process. The power required can vary based on the welding process and the specific materials being welded.
Wire Feeder: In certain welding processes (like MIG), a continuous wire electrode is fed into the weld. The wire feeder controls the speed at which this wire is fed into the weld.

The wire feeder is a key component in some welding processes, such as Gas Metal Arc Welding (GMAW), also known as Metal Inert Gas (MIG) welding. Its function is to supply a consistent and controllable feed of wire to the welding torch.

Key elements of a wire feeder include:

Wire Spool: The wire is typically supplied on a large spool. The size of the spool can vary depending on the welding setup - from small spools for portable MIG welders to large drums for industrial applications.
Drive Roll System: This is the part of the feeder that physically pushes the wire off the spool and into the cable that leads to the torch. The drive rolls must be sized correctly for the diameter of the wire being used. They exert force on the wire, but not so much that it deforms.
Tension Adjustment: This allows the welder or operator to control how much pressure the drive rolls exert on the wire. The correct tension is important to prevent the wire from slipping or being deformed.
Feed Speed Control: This allows adjustment of how quickly the wire is fed into the weld. This is typically measured in inches per minute (IPM) or meters per minute (m/min). The feed speed affects the size and depth of the weld bead and can be set manually or programmed in a robotic welding system.
Wire Guide: This guides the wire from the spool to the drive rolls, and from there into the cable that leads to the torch. The guide ensures that the wire doesn't become tangled or misaligned.

By ensuring a consistent feed of wire to the torch, the wire feeder plays a crucial role in maintaining a stable arc and producing a high-quality weld.

Welding Gas Supply: In processes like MIG and TIG, a shielding gas is used to protect the weld pool from contamination. The gas supply system regulates the flow of this gas during the welding process.

The welding gas supply refers to the system that delivers a shielding gas to the welding torch during the welding process. The type of gas used and the method of delivery can vary depending on the specific welding process, but the primary function of the gas is to protect the weld pool from atmospheric contamination.

Key components of a welding gas supply include:

Gas Cylinders: These are the tanks where the shielding gas is stored under pressure. The cylinders are usually made of high-strength materials like steel or aluminum to safely contain the pressurized gas.
Gas Regulator: This device reduces the high pressure of the gas in the cylinder to a usable level for welding. It also controls the flow rate of the gas, usually measured in cubic feet per hour (CFH).
Flowmeter: This is a gauge that measures the rate of gas flow. Some regulators have a built-in flowmeter, while others are separate.
Gas Hose: This is the tube that carries the gas from the regulator to the welding torch. In a robotic welding setup, the hose would be integrated into the robotic arm.
Solenoid Valve: In some systems, a solenoid valve is used to automatically start and stop the flow of gas when welding begins and ends.

The choice of shielding gas can significantly affect the properties of the weld. For example, in Gas Metal Arc Welding (GMAW) or MIG welding, using pure carbon dioxide as the shielding gas results in a deeper weld penetration and higher weld metal deposition rate, but it can also increase the amount of spatter. Argon, either pure or mixed with other gases, is also commonly used, especially in TIG welding, where it helps to produce a stable and high-quality weld.

Sensors and Cameras: These are used to monitor the welding process and make any necessary adjustments in real-time. This could include seam-tracking systems that adjust the robot's path, or quality monitoring systems that detect defects in the weld.

Sensors and cameras are used in robotic welding systems for various reasons, including process monitoring, path correction, and quality control. They enhance the precision, consistency, and reliability of robotic welding.

Here are some common types of sensors and cameras used in robotic welding:

Seam Tracking Sensors: These sensors help detect the position and orientation of the weld joint or seam in real-time, allowing the robot to adjust its path as needed. Types of seam tracking sensors include tactile sensors (which physically "feel" the seam), laser sensors (which use a laser to detect the seam), and vision systems (which use a camera and image processing algorithms).
Arc Sensing Systems: These sensors monitor the characteristics of the welding arc (such as voltage and current) and use this information to infer the position of the torch relative to the workpiece. This can help correct the torch position and maintain a consistent weld.
Through-Arc Seam Tracking: This technology uses the electrical feedback from the welding arc itself to track the seam. Changes in voltage can indicate changes in torch-to-workpiece distance, while changes in current can suggest sideways movement.
Vision Systems: These are camera-based systems used to verify the presence and position of components before welding, to track the seam during welding, or to inspect the quality of the weld after it's done. Vision systems can use various types of cameras, including 2D, 3D, and thermal imaging cameras.
Collision Sensors: These are used to detect any unintended contact between the robot and its surroundings, helping to prevent damage to the robot or the workpiece.

By incorporating sensors and cameras, robotic welding systems can adapt to varying conditions, improving the consistency and quality of the weld, reducing the need for post-weld inspections and corrections, and enhancing the overall efficiency and reliability of the process.

Fixtures/Clamps: These hold the workpieces in the correct alignment for the weld. Fixturing is crucial to achieving consistent, high-quality welds, as it ensures that the robot will perform the weld the same way each time.

Fixtures and clamps are essential components in the robotic welding process, ensuring that the parts to be welded are held firmly in the correct position and orientation during the entire welding operation.

Here's more about these components:

Fixtures: Fixtures are custom-designed devices used to hold and support the workpieces during welding. They're designed to allow quick and easy loading and unloading of parts while ensuring that each part is held in exactly the same position every time. This consistent positioning is crucial for robotic welding, as it allows the robot to follow a predefined path accurately. Fixtures can be manual or automated, with automated fixtures being used for high-volume production to further increase efficiency.
Clamps: Clamps are used in conjunction with fixtures to secure the parts being welded. They exert force on the workpiece to hold it in place against the fixture. Like fixtures, clamps can also be manual or automated. Manual clamps are generally used in low-volume or custom welding applications, while pneumatic or hydraulic clamps are often used in high-volume production to speed up the process.

Both fixtures and clamps must be designed and constructed to withstand the heat and spatter generated by the welding process. They should also allow for easy access by the welding torch to the areas to be welded. By ensuring that the workpieces are always held in the correct position and orientation, fixtures and clamps contribute to the precision, consistency, and efficiency of the robotic welding process.

Each of these components plays a vital role in ensuring that the robotic welding process is accurate, efficient, and consistent.

Key Players in Robotic Welding

There are several manufacturers who are leading the way in robotic welding technology:

FANUC: FANUC's robotic welding solutions are renowned for their efficiency and dependability.
Yaskawa Motoman: Known for their precision and range of robotic arms designed specifically for welding.
ABB: ABB's FlexArc welding robots are reliable and flexible.

Benefits of Robotic Welding

Robots offer several advantages in welding operations that result in increased efficiency, improve safety and ultimately improve quality:

Speed and Non-Stop Operation: Robots can work at high speeds and operate continuously without the need for breaks, which significantly increases productivity and efficiency.
Consistency and Precision: Robots have the ability to replicate the same task with the same precision, over and over again. This consistency results in fewer errors and rework, increasing the quality of the welds and overall efficiency.
Flexibility: Robots can be programmed to perform a variety of welding tasks. They can easily switch between different programs, allowing for efficient transitions between different parts or products.
Safety: Robots can handle hazardous tasks that are risky for human welders, such as those involving high heat or toxic fumes. This reduces workplace accidents and associated downtime, increasing operational efficiency.
Reduced Material Waste: Robotic welding systems are highly precise, resulting in optimal use of welding materials. This reduces waste and helps cut down costs.
Lower Labor Costs: While the upfront cost of a robotic welding system can be high, over time, the system can lead to savings through reduced labor costs. Robots can operate around the clock without the need for benefits or overtime pay, making them a cost-effective solution in the long run.
Improved Workflow: Robots can be integrated into an automated workflow, which can streamline operations and increase efficiency. By automating loading, welding, and unloading, manufacturers can minimize the time between steps in the welding process.

Robots enhance speed, consistency, safety, and cost-effectiveness in welding operations, making them an indispensable tool in a modern manufacturing operation.

Applications of Robotic Welding

Robotic welding has a broad range of applications across numerous industries. Here are some key sectors and their specific uses:

Automotive Industry: One of the earliest adopters of robotic welding, the automotive industry uses it extensively for assembling car bodies, frames, and components. Tasks range from spot welding of body panels to arc welding of engine parts.
Aerospace Industry: Robotic welding is used for the precise welding of critical components such as engine parts and structural elements of aircraft and spacecraft. This industry requires high precision and consistency, making robotic welding an ideal solution.
Construction and Infrastructure: Robots are used for welding structural steel, pipelines, and other components. Their ability to handle large and heavy parts can improve efficiency and safety in these industries.
Manufacturing and Fabrication: Robotic welding is used in the production of a wide range of goods, from appliances and furniture to machinery and equipment. It allows for high-volume production and consistent quality.
Shipbuilding: Robotic welding can handle the large-scale, high-strength welding tasks required in shipbuilding. Robots can improve productivity and quality in the construction of everything from small boats to large ships.
Energy Sector: In the production of wind turbines, solar panels, and other energy equipment, robotic welding is used to produce high-quality, durable components.
Electronics Industry: Miniature robotic welding systems are used for precision welding tasks in the production of electronics and computer components.
Oil and Gas Industry: Robotic welding is used in the fabrication of pipelines, oil rigs, and other equipment. It allows for efficient, high-quality welding of thick materials and can withstand the harsh conditions associated with this industry.
Railway Industry: In the production of railway vehicles and infrastructure, robotic welding can handle the large-scale, heavy-duty welding tasks required, providing high-quality, durable welds.
Medical Equipment Manufacturing: For the production of medical devices and equipment, robotic welding can deliver the precision and consistency required. It's especially valuable for small, intricate parts and materials like stainless steel and titanium.
Agriculture: Robotic welding is used in the production of agricultural machinery and equipment, such as tractors and harvesters. It allows for efficient, high-volume production and consistent quality.
Food and Beverage Industry: Robotic welding can be used to produce food processing and packaging equipment, ensuring sanitary conditions by creating smooth, crevice-free welds.
Defense and Military: In the production of military vehicles, weapons, and other equipment, robotic welding provides the strength, precision, and consistency required.
Education: With the growing demand for skilled robotic technicians, educational institutions are incorporating robotic welding into their curriculums. It's used as a teaching tool in vocational schools, colleges, and universities.

By spanning across such a wide array of industries, it's clear that robotic welding is a critical tool in modern manufacturing and production, offering unparalleled efficiency, precision, and quality control.

Robotic Welding in the Automotive Industry

The automotive industry has long been a pioneer in the adoption of robotic welding due to the numerous benefits it offers. Here's a more detailed look at its applications:

Car Body Assembly: The most extensive application of robotic welding in the automotive industry is during the assembly of the car body, often referred to as the "body in white". This is the stage where the car's body parts like the roof, side panels, and floor are welded together to form the car's structure. Here, robotic spot welders are predominantly used due to their ability to quickly and efficiently create strong joins without requiring filler material.
Sub-Assembly Welding: Before the final assembly, smaller parts are pre-assembled using robotic welders. These include parts like doors, bonnets, and boot lids. Robots can quickly spot weld these components together in a fraction of the time it would take human welders.
Chassis and Frame Assembly: The assembly of the vehicle's chassis requires high precision and high-quality welds due to the structural load it bears. Robotic welding is used to join heavy steel and aluminum sections, often using Gas Metal Arc Welding (GMAW) or Metal Active Gas (MAG) welding processes. Robotic welders offer the advantage of being able to handle complex geometries and reach tight spots.
Engine and Transmission Welding: Engines and transmissions consist of various components made from different metals, requiring precise and high-quality welds. The small size and complex geometries of these parts often require robotic welders to use Gas Tungsten Arc Welding (GTAW), known for its precision and control.
Safety Components: Components such as seat frames, steering columns, and braking systems are safety critical and require high-quality welds. Robotic welding provides the necessary precision and repeatability to ensure that these welds meet the stringent safety standards set by regulatory bodies.
Muffler Assembly: The assembly of the vehicle's exhaust system, including the muffler, requires a series of spot and seam welds. These welds must be strong and airtight. Robots are ideally suited for this task due to their precision and the ability to handle high temperatures.

From large-scale assembly operations to precision welding of small components, robotic welding plays a crucial role in virtually every aspect of automotive manufacturing. By improving the speed, quality, and efficiency of welding operations, robots are helping the automotive industry to meet its ever-growing production demands while maintaining high quality and safety standards.

Choosing the Right Robotic Welding Solution

When considering a robotic welding solution, you should take into account several factors:

Type of Welding: Whether you need arc or spot welding will significantly influence your choice of robot.
Payload and Reach: These determine the size and weight of the objects the robot can handle, and how far it can extend.
Safety Features: As welding involves high temperatures and potentially hazardous materials, safety features are crucial.

The Future of Robotic Welding

Emerging trends in robotic welding point to a future where these machines are even more intelligent and capable:

Adaptive Welding: Robots equipped with sensors and AI can adjust their actions in real-time based on the welding conditions.
Collaborative Robots: Newer 'cobots' are designed to work safely alongside humans, increasing flexibility in manufacturing processes.

By staying abreast of these trends, you can ensure your business remains competitive in an increasingly automated world.

Conclusion

Stepping into the world of robotic welding, it's clear that this technology is no mere trend - it's the future of fabrication. With the potential to drastically improve quality, efficiency, and safety, the benefits are substantial. The key lies in understanding your specific needs and finding the right solution that fits.

The world of robotic welding may seem vast and complex, but remember, every expert was once a beginner. As we've explored, the journey of integrating robotic welding into your operations is one of continuous learning and adapting. But the payoff, in terms of productivity and growth, is worth the effort.

Whether you're just dipping your toes into the realm of automation, or you're looking to further expand your robotic capabilities, the future of fabrication is bright and full of exciting possibilities. And with industry leaders paving the way with innovative solutions, there's never been a better time to embrace the revolution that is robotic welding.

Here's to exploring, learning, and harnessing the power of robotic welding to create a more efficient and productive future!
